Detail produk:
|
| segel sekunder: | NBR, EPDM, VIT | Bahan: | MOBIL SIC TC PTFE |
|---|---|---|---|
| Aplikasi: | Pompa air, pompa sentrifugal, pompa submersible | Kompatibilitas Cairan: | Air, Minyak, Bahan Kimia Ringan |
| Musim semi: | Baja tahan karat | Bahan Pegas: | Baja tahan karat |
| Bahan: | Karbon, Keramik, Baja Tahan Karat | Kata kunci: | SEGEL POMPA AIR |
| Kinerja: | Korosi | Segel Pompa Tepi Sungai: | Segel Pompa YM |
| Menyoroti: | O-Ring Pompa Air Segel Mekanis,Penutup Mekanis Pompa Air Matahari Tunggal,Elastomer Pompa Air Segel Mekanis |
||
|
Suhu
|
-30oC sampai 200oC, tergantung pada elastomer
|
|
Tekanan
|
Hingga 5 bar
|
|
Kecepatan
|
Hingga 10 m/s
|
|
End play/axial float allowance
|
± 0,1 mm
|
|
Ukuran
|
8mm sampai 50mm
|
|
Merek
|
YM
|
|
Wajah
|
Keramik, SIC, TC
|
|
Kursi
|
Karbon, SIC, TC
|
|
Elastomer
|
NBR, EPDM, VITON
|
|
Musim semi
|
SS304, SS316
|
|
Bagian logam
|
SS304, SS316
|
Batas operasi:
Tekanan: ≤ 0,5MPa
Kecepatan: ≤10m/s
Suhu: -30oC~+200oC
Rotary Ring ((Plastik Karbon/Karbon/Sic/TC)
Cincin Tetap (Ceramic/Sic/Tc)
Segel sekunder ((nbr/Epdm/VITON)
Spring & Bagian Lainnya ((Sus304/Sus316)

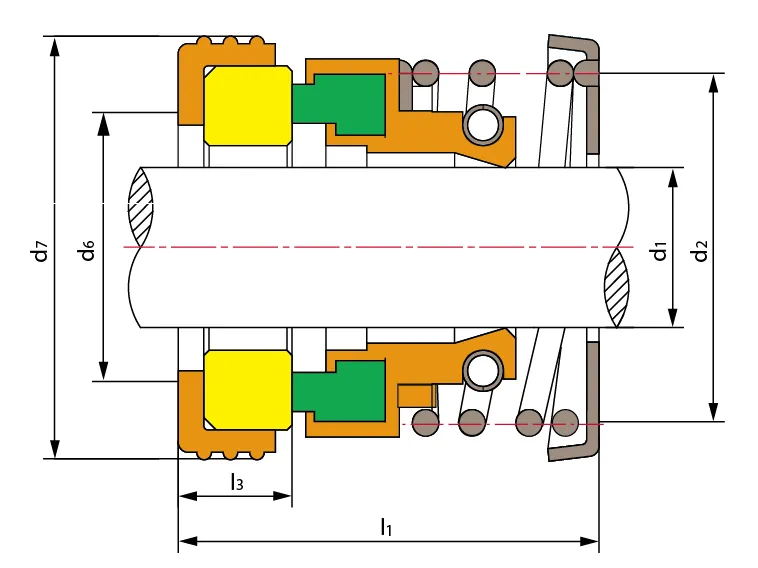

| Model | d1 (mm) | d2 | d6 | d7 | l1 | l3 |
| 156-8 | 8 | 16 | 13 | 18/21 | 18 | 5/6 |
| 156-9 | 9 | 18 | 16 | 21 | 23 | 6 |
| 156-10 | 10 | 20 | 16 | 20/22/24 | 23 | 6.5 |
| 156-11 | 11 | 20 | 16 | 24 | 23 | 7 |
| 156-12 | 12 | 22.5 | 17 | 26 | 24 | 7 |
| 156-13 | 13 | 22.5 | 17 | 26 | 24 | 7 |
| 156-14 | 14 | 24.5 | 21 | 28/30 | 25 | 7 |
| 156-15 | 15 | 24.5 | 21 | 28/30 | 25 | 7 |
| 156-16 | 16 | 28.5 | 22 | 32 | 27 | 8 |
| 156-17 | 17 | 28.5 | 22 | 32 | 27 | 8 |
| 156-18 | 18 | 31.5 | 25 | 35 | 29 | 8 |
| 156-19 | 19 | 31.5 | 25 | 35 | 29 | 8 |
| Model | d1 (mm) | d2 | d6 | d7 | l1 | l3 |
| 156-20 | 20 | 31.5 | 27 | 38 | 31 | 8 |
| 156-22 | 22 | 34.5 | 29 | 40 | 32 | 8 |
| 156-25 | 25 | 37.5 | 32 | 44 | 33 | 9 |
| 156-28 | 28 | 40.5 | 34 | 46 | 34 | 9 |
| 156-30 | 30 | 44.5 | 38 | 50 | 35 | 9 |
| 156-32 | 32 | 47.5 | 40 | 54 | 37 | 9 |
| 156-35 | 35 | 50.5 | 44 | 58 | 40 | 10 |
| 156-38 | 38 | 55 | 46 | 60 | 42 | 10 |
| 156-40 | 40 | 56.5 | 48 | 64 | 43 | 10 |
| 156-45 | 45 | 61.5 | 52 | 66 | 45 | 10 |
| 156-50 | 50 | 66.5 | 58 | 72 | 47 | 10 |
