Detail produk:
|
| pompa: | POMPA GRUNDFOS | Segel Wajah: | Mobil Vs Cer, SIC VS SIC |
|---|---|---|---|
| Layanan: | Layanan OEM Disesuaikan | Spesifikasi: | Lubang poros 10-100mm |
| Wajah: | Karbon, Sic, Tc | Cincin-O: | NBR, EPDM, VIT |
| Menyoroti: | G60 Seat Mechanical Seal,Silicone Karbida Mechanical Seal |
||

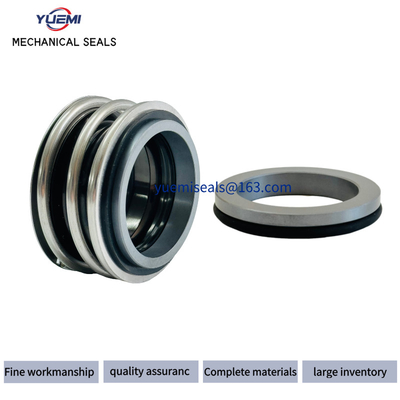

Elastomer Bellows segel mekanik MG1 cocok untuk berbagai kondisi layanan. 1U,1K sesuai dengan standar AS dan Inggris masing-masing.Rangkaian segel mekanik tipe 1 dirancang untuk aplikasi universal: pompa, mixer, kompresor udara, kipas angin dan peralatan berputar lainnya.industri pengolahan kimia dan pembangkit listrik.
Transmisi yang dapat diandalkan karena desain khusus pada pita drive dan notch drive.
Perimbangan khusus dalam balon elastomer. desain,dapat digunakan dalam aplikasi tekanan tinggi
SSegel, seimbang, dua arah
Kemampuan pertukaran yang baik, data dimensi 1U sesuai dengan standar AS, 1K sesuai dengan standar Inggris.
Tersedia dalam ukuran metrik dan inci
| D1 ((mm) | Kode ukuran | D3 | D7 | L4 | L1 | L11 | L12 | |
| 10 | 0100 | 24.00 | 21.00 | 6.60 | 14.50 | 25.90 | 33.40 | |
| 12 | 0120 | 24.00 | 23.00 | 6.60 | 15.00 | 25.90 | 33.40 | |
| 14 | 0140 | 28.00 | 25.00 | 6.60 | 17.00 | 28.40 | 33.40 | |
| 15 | 0150 | 28.00 | 27.00 | 6.60 | 17.00 | 28.40 | 33.40 | |
| 16 | 0160 | 28.00 | 27.00 | 6.60 | 17.00 | 28.40 | 33.40 | |
| 18 | 0180 | 31.00 | 33.00 | 7.50 | 19.50 | 30.00 | 37.50 | |
| 20 | 0200 | 36.00 | 35.00 | 7.50 | 21.50 | 30.00 | 37.50 | |
| 22 | 0220 | 36.00 | 37.00 | 7.50 | 21.50 | 30.00 | 37.50 | |
| 24 | 0240 | 40.50 | 39.00 | 7.50 | 22.50 | 32.50 | 42.50 | |
| 25 | 0250 | 41.00 | 40.00 | 7.50 | 23.00 | 32.50 | 42.50 | |
| 28 | 0280 | 47.00 | 43.00 | 7.50 | 26.50 | 35.00 | 42.50 | |
| 30 | 0300 | 47.00 | 45.00 | 7.50 | 26.50 | 35.00 | 42.50 | |
| 32 | 0320 | 51.00 | 48.00 | 7.50 | 27.50 | 35.00 | 47.50 | |
| 33 | 0330 | 51.00 | 48.00 | 7.50 | 27.50 | 35.00 | 47.50 | |
| 35 | 0350 | 55.00 | 50.00 | 7.50 | 28.50 | 35.00 | 47.50 | |
| 38 | 0380 | 58.00 | 56.00 | 9.00 | 30.00 | 36.00 | 46.00 | |
| 40 | 0400 | 60.00 | 58.00 | 9.00 | 30.00 | 36.00 | 46.00 | |
| 43 | 0430 | 63.30 | 61.00 | 9.00 | 30.00 | 36.00 | 51.00 | |
| 45 | 0450 | 65.00 | 63.00 | 9.00 | 30.00 | 36.00 | 51.00 | |
| 48 | 0480 | 69.00 | 66.00 | 9.00 | 30.50 | 36.00 | 51.00 | |
| 50 | 0500 | 71.00 | 70.00 | 9.50 | 30.50 | 38.00 | 50.50 | |
| 53 | 0530 | 76.00 | 73.00 | 11.00 | 33.00 | 36.50 | 59.00 | |
| 55 | 0550 | 78.00 | 75.00 | 11.00 | 35.00 | 36.50 | 59.00 | |
| 58 | 0580 | 82.00 | 78.00 | 11.00 | 37.00 | 41.50 | 59.00 | |
| 60 | 0600 | 85.00 | 80.00 | 11.00 | 38.00 | 41.50 | 59.00 | |
| 65 | 0650 | 90.00 | 85.00 | 11.00 | 40.00 | 41.50 | 69.00 | |
| 68 | 0680 | 94.00 | 90.00 | 11.30 | 40.00 | 48.70 | 68.70 | |
| 70 | 0700 | 97.00 | 92.00 | 11.30 | 40.00 | 48.70 | 68.70 | |
| 75 | 0750 | 102.00 | 97.00 | 11.30 | 40.00 | 48.00 | 68.70 | |
| 80 | 0800 | 108.00 | 105.00 | 12.00 | 40.00 | 48.00 | 78.00 | |
| 85 | 0850 | 117.00 | 110.00 | 14.00 | 41.00 | 46.00 | 76.00 | |
| 90 | 0900 | 126.00 | 115.00 | 14.00 | 45.00 | 51.00 | 76.00 | |
| 95 | 0950 | 131.00 | 120.00 | 14.00 | 46.00 | 51.00 | 76.00 | |
| 100 | 1000 | 136.00 | 125.00 | 14.00 | 47.00 | 51.00 | 76.00 | |
