Detail produk:
|
| Kata kunci: | segel pompa | bahan baja tahan karat: | SS304.SS316 |
|---|---|---|---|
| Penyegelan: | FKM MOBIL SIC TC CE NBR EPDM | Bahan: | MOBIL SIC TC PTFE |
| Asal usul: | Guangzhou, Cina | pompa: | segel pompa |
| Dukungan: | Dapat disesuaikan | ||
| Menyoroti: | Karet bellow segel mekanis,Mg12 G606 Segel Mekanis,Segel Mekanis Profesional |
||

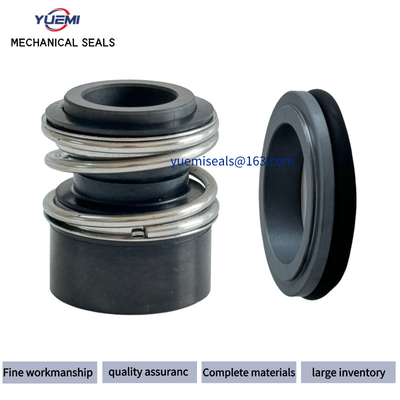

| YMMG1/MG12/MG13/MG1S20 Elastromer Bellow Shaft Seal seri Kondisi operasi: Suhu: -20oC sampai + 120oC Tekanan: ≤ 1,2MPa Kecepatan:≤10m/s |
Bahan: Ring stasioner:V1,Q1,Q2,U2 Cincin putar:B,A,Q1,Q2 Segel sekunder:P,E,V Bagian pegas dan logam:F,G Tipe kursi: Standar: G60 Alternatif: G4,G6,G9,G50,G606 |
| Aplikasi: Air bersih, air limbah, minyak dan cairan korosif sedang lainnya. | |
| Kostum: Grundfo-s, Hilge Pumps Pengganti: MG1/12/13/ S20,AES B02/B012/B01,Vulcan 191/192/193,Roten L3/L3K/L3N,Flowserve 190/192/193 |
|
Bahan:
Cincin stasioner: Silikon Karbida Reaksi Terikat, Keramik ((Alumina), Silikon Karbida Sintered Tanpa Tekanan, Ni-binder Tungsten
Rotary Ring: Antimony Impreg. Carbon Graphite, Resin Impregnated Carbon Graphite ((Furan), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide
Spring dan Bagian Logam:Baja tahan karat,Baja tahan karat
Segel sekunder:Karet Fluorokarbon ((Viton),Nitril ((NBR),Etilena
Aplikasi:
Air bersih,
air limbah
minyak dan cairan korosif sedang lainnya
| Ukuran | d | D3 | D2 | D1 | L1 | L11 | L12 | L13 | L2 |
| 16 | 16 | 28.5 | 23 | 27 | 17 | 28.4 | 33.4 | 25 | 6.6 |
| 18 | 18 | 32 | 27 | 33 | 19.5 | 30 | 37.5 | 25 | 7.5 |
| 19 | 19 | 37 | - | - | 21.5 | 30 | 37.5 | 25 | - |
| 20 | 20 | 37 | 29 | 35 | 21.5 | 30 | 37.5 | 25 | 7.5 |
| 22 | 22 | 37 | 31 | 37 | 21.5 | 30 | 37.5 | 25 | 7.5 |
| 24 | 24 | 42.5 | 33 | 39 | 22.5 | 32.5 | 42.5 | 25 | 7.5 |
| 25 | 25 | 42.5 | 34 | 40 | 23 | 32.5 | 42.5 | 25 | 7.5 |
| 28 | 28 | 49 | 37 | 43 | 26.5 | 35 | 42.5 | 33 | 7.5 |
| 30 | 30 | 49 | 39 | 45 | 26.5 | 35 | 42.5 | 33 | 7.5 |
| 32 | 32 | 53.5 | 42 | 48 | 27.5 | 35 | 47.5 | 33 | 7.5 |
| 33 | 33 | 53.5 | 42 | 48 | 27.5 | 35 | 47.5 | 33 | 7.5 |
| 35 | 35 | 57 | 44 | 50 | 28.5 | 35 | 47.5 | 33 | 7.5 |
| 38 | 38 | 59 | 49 | 56 | 30 | 36 | 46 | 33 | 9 |
| 40 | 40 | 62 | 51 | 58 | 30 | 36 | 46 | 33 | 9 |
| 42 | 42 | 65.5 | - | - | 30 | 36 | 51 | 41 | - |
| 43 | 43 | 65.5 | 54 | 61 | 30 | 36 | 51 | 41 | 9 |
| 45 | 45 | 68 | 56 | 63 | 30 | 36 | 51 | 41 | 9 |
| 48 | 48 | 70.5 | 59 | 66 | 30.5 | 36 | 51 | 41 | 9 |
| 50 | 50 | 74 | 62 | 70 | 30.5 | 38 | 50.5 | 41 | 9.5 |
| 53 | 53 | 78.5 | 65 | 73 | 33 | 36.5 | 59 | 41 | 11 |
| 55 | 55 | 81 | 67 | 75 | 35 | 36.5 | 59 | 41 | 11 |
