Detail produk:
|
| Model NO.: | N49/Roten7k | Bahan Wajah: | Karbon, Sic, Tc |
|---|---|---|---|
| Spesifikasi: | OEM | Fungsi: | untuk Pompa, Kompresor |
| Jenis: | busuk | Waktu pelaksanaan: | Cepat ke Kapal |
| Menyoroti: | Roten 7K Wave Spring Seal Mekanis,Aesseal W01 Segel Mekanis,Penutup mekanik pompa air |
||
Deskripsi Produk

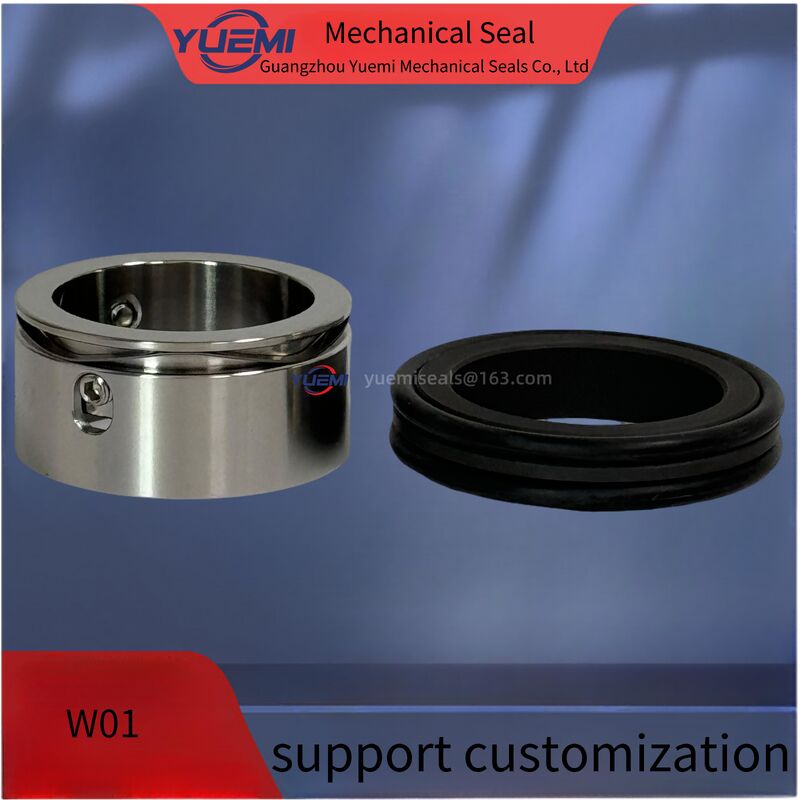

Aesseal W01 Segel Mekanis Roten 7K Segel Untuk Pompa Air
Kondisi operasi:
Gelombang spring larva screwed tipis Cross Section 'panjang kerja pendek segel mekanis.
Tersedia dalam bahan Food Grade sebagai standar (Dengan bahan yang sesuai dengan FDA).
Segel mekanis gelombang pegas
|
P (mm) |
D1 | D3 | L1 | L2 |
| 15.8 | 28.5 | 27.0 | 19.1 | 6.3 |
| 16.0 | 28.5 | 27.0 | 19.1 | 6.3 |
| 19.1 | 31.7 | 30.0 | 19.1 | 6.3 |
| 24.0 | 35.4 | 34.1 | 19.1 | 7.6 |
| 28.0 | 42.0 | 40.0 | 19.1 | 7.6 |
| 28.6 | 41.2 | 39.5 | 19.1 | 7.6 |
| 30.0 | 42.7 | 41.0 | 19.1 | 7.6 |
| 31.7 | 44.2 | 42.4 | 19.1 | 7.6 |
| 32.0 | 44.4 | 42.4 | 19.1 | 7.6 |
| 35.0 | 47.6 | 45.5 | 19.1 | 7.6 |
| 38.0 | 53.9 | 51.8 | 21.1 | 8.1 |
| 44.4 | 60.3 | 58.2 | 21.1 | 8.1 |
| 47.6 | 63.5 | 61.4 | 21.1 | 8.1 |
| 50.0 | 63.9 | 61.9 | 21.1 | 8.1 |
| 50.8 | 66.6 | 64.6 | 22.1 | 9.6 |
| 53.9 | 73.0 | 71.0 | 22.1 | 9.6 |
| 54.0 | 73.9 | 71.0 | 22.1 | 9.6 |
| 54.6 | 75.0 | 72.0 | 22.1 | 9.6 |
| 55.0 | 75.0 | 72.0 | 22.1 | 9.6 |
| 63.0 | 83.0 | 79.3 | 25.8 | 9.1 |
| 63.5 | 88.9 | 79.3 | 25.8 | 9.1 |
| 69.8 | 95.2 | 88.9 | 25.8 | 9.1 |
| 73.0 | 98.4 | 94.0 | 25.8 | 9.1 |
| 75.0 | 100.4 | 96.0 | 25.8 | 9.1 |
Deskripsi:
|
Suhu
|
-20oC sampai 200oC, Tergantung pada elastomer
|
|
Tekanan
|
≤ 0,8MPa |
|
Kecepatan
|
≤ 15m/sec |
|
End play/axial float allowance
|
± 0,1 mm
|
|
Ukuran
|
Dari 15,8 sampai 75
|
|
Merek
|
YueMi
|
|
Wajah
|
Karbon, SiC
|
|
Kursi
|
Keramik, Silicon Carbide, TC
|
|
Elastomer
|
NBR, EPDM, VIT dll.
|
|
Musim semi
|
SS304, SS316
|
|
Bagian logam
|
SS304, SS316
|
